Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
| Nguồn gốc | Trung Quốc |
|---|---|
| Hàng hiệu | FABIA |
| Chứng nhận | ISO9001,BV,CCS,DNV |
| Số mô hình | 2 inch ～ 100 inch |
| Tài liệu | Sổ tay sản phẩm PDF |
| Minimum Order Quantity | 1 set |
| Giá bán | có thể đàm phán |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Product Name | ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve | Valve Application | Ventilation |
|---|---|---|---|
| Valve Material | Stainless steel | Valve Connection | Flanged |
| Valve Operation | Pneumatic | Valve Certification | BV,DNV,CCS |
| áp suất van | ≤0,25MPa | Valve Seal | Stainless steel |
| Valve Size | 2-100 inch | Valve Temperature | 500℃ |
| Valve Type | Butterfly | ||
| Làm nổi bật | Van bướm bơm khí ICER,Bảo vệ môi trường công nghiệp van bướm,Smart Control van bướm khí |
||
Mô tả sản phẩm

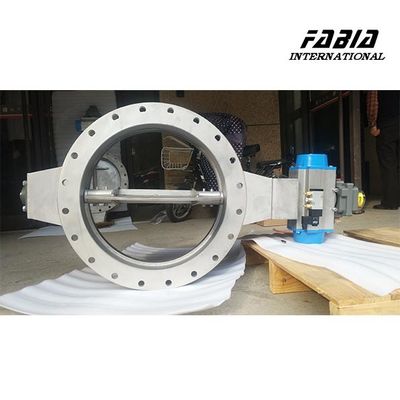

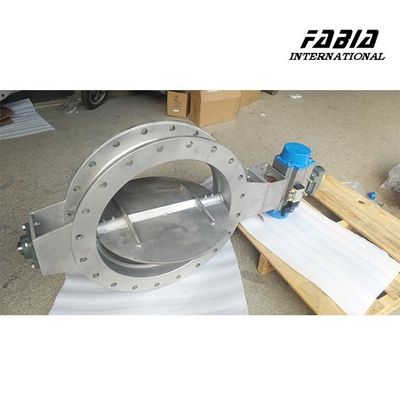

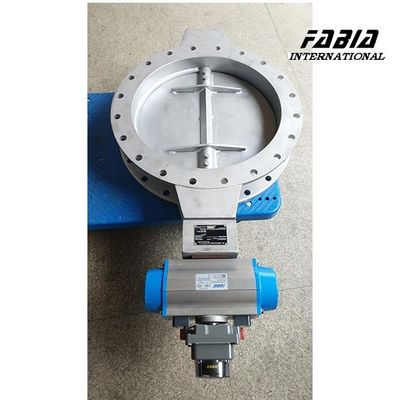

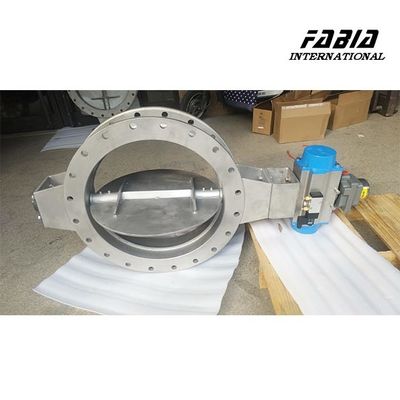

Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
1. Description:
ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve is mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen
oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.
In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe
system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Flange type heavy-duty ventilation butterfly valve | |
| Size: | 2inch ～ 100 inch | |
| Material: |
316/316L/304/304L/ Corten |
|
| Connection type: | Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | ≤0.25Mpa | |
| Temperature: | -≤500℃ | |
| Model: | FB-D-3.......... | |
3. Features:
- Simple and light in structure
- Suitable for low pressure air or other gas flow, pressure control and high temperature gas
- the main structural components of the valve are welded
- CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
- High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
- Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
- Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.
-
Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.
-
Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.
