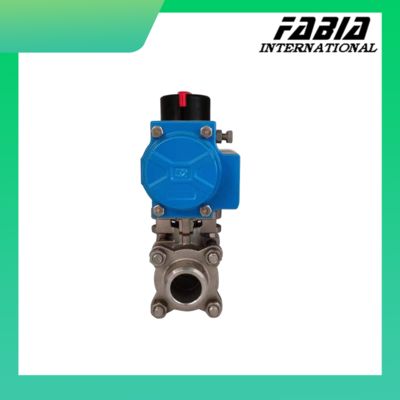

Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
| Nguồn gốc | Trung Quốc |
|---|---|
| Hàng hiệu | FABIA |
| Chứng nhận | ISO9001,CE,CCS,DNV |
| Số mô hình | 1/8 inch ～ 36 inch |
| Tài liệu | Sổ tay sản phẩm PDF |
| Số lượng đặt hàng tối thiểu | 1 bộ |
| Giá bán | có thể đàm phán |
| chi tiết đóng gói | Thùng/vỏ gỗ |
| Thời gian giao hàng | 15-30 ngày làm việc |
| Điều khoản thanh toán | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp | 100-1000 bộ mỗi tuần |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Vật liệu van | Thép không gỉ | điều khiển van | Khí nén |
|---|---|---|---|
| Kết nối van | Chủ đề | Tên sản phẩm | Van bi thép không gỉ khí nén |
| Áp suất van | PN16-40 | Loại van | Van bóng khí nén |
| Nhiệt độ van | -20 ~+150 |
Mô tả sản phẩm
FABIA Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth
1. Description:
Characteristics of pneumatic internal ball valve: angular stroke output torque, open quickly, stable and reliable, widely used.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, pneumatic ball valve is one of the least fluid resistance in all valve classes, even if it is a reduced pneumatic ball valve, its fluid resistance is quite small.
- Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
- Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials is easy to seal, and the sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.
- Valve stem seal is reliable, because the valve stem is only as if rotating without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss of the ball is small, so the service life of the pneumatic ball valve is long.
- Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process.
- Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
