Metal High Pressure Electric Ball Valve Stainless Steel Two Way Flange Ball Valve
| Nguồn gốc | Trung Quốc |
|---|---|
| Hàng hiệu | FABIA |
| Chứng nhận | ISO9001,CE,CCS,DNV |
| Số mô hình | 1/8 inch ～ 36 inch |
| Tài liệu | Sổ tay sản phẩm PDF |
| Số lượng đặt hàng tối thiểu | 1 bộ |
| Giá bán | có thể đàm phán |
| chi tiết đóng gói | Thùng/vỏ gỗ |
| Thời gian giao hàng | 15-30 ngày làm việc |
| Điều khoản thanh toán | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp | 100-1000 bộ mỗi tuần |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Tên sản phẩm | Van bi mặt bích điện cao áp | Loại van | Van bi cao áp |
|---|---|---|---|
| Vật liệu | Thép không gỉ | Hoạt động | Điện |
| Loại kết nối | Mặt bích | Ghế | PTFE, PEEK |
| Kích cỡ | 1/2-8 inch | Xếp hạng áp lực | 1000-3000psi |
| Phạm vi nhiệt độ | -20 đến 120°C |
Mô tả sản phẩm

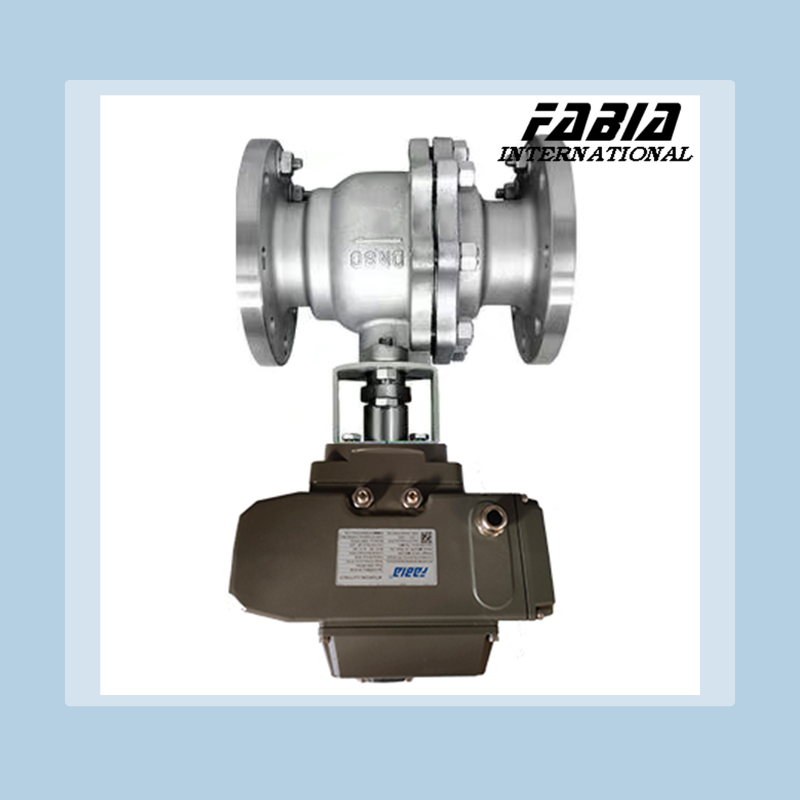

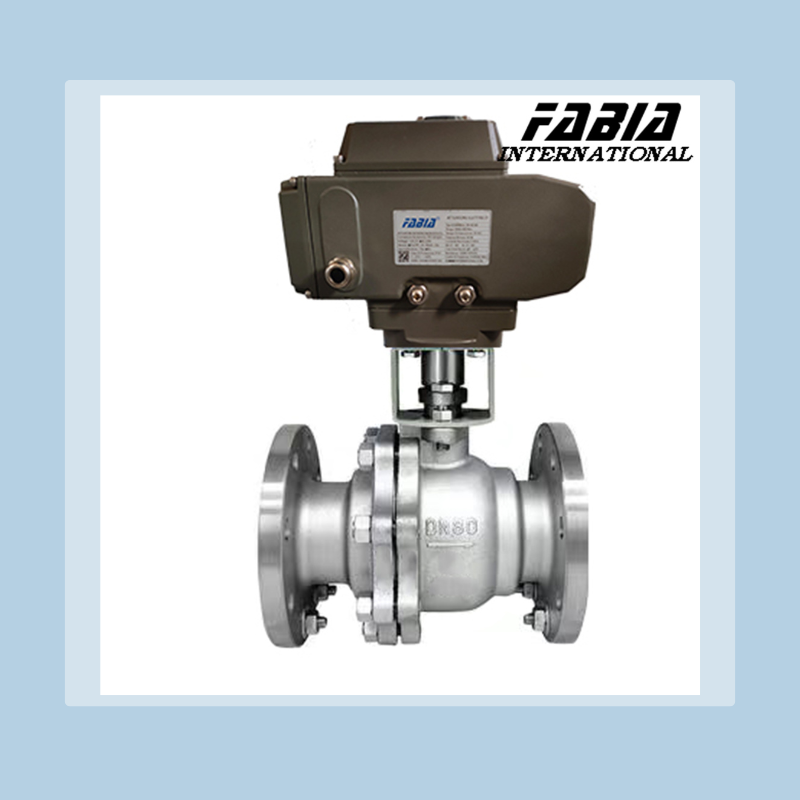

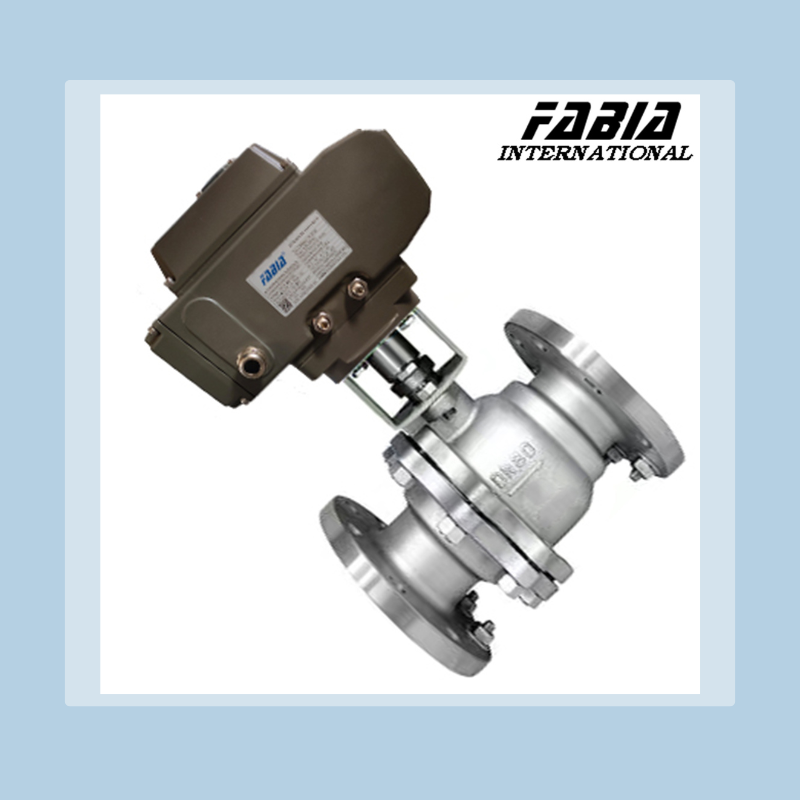

FABIA Electric High Pressure Stainless Steel Two Way Flange Ball Valve
1. Description:
Electric high pressure two-way flange ball valve: has the function of changing the medium flow, pressure and temperature, suitable for water, steam, air and other media, is one of the commonly used valves in industry, is widely used in water heating, chemical, Marine, equipment and other industries, is an intelligent control system, and is not subject to the media cleanliness, installation Angle restrictions.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two Way Flange Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- External leakage is blocked, the internal leakage is easy to control, and the use is safe.
- Electric two-way valve is completed by electromagnetic force acting on the iron core sealed in the magnetic insulation tube, and there is no dynamic seal, so the external leakage is easy to block.
- Structure of the electric two-way valve is easy to control internal leakage until it is reduced to zero.
- Electric two-way valve itself has a simple structure and low price, and the advantages of the electric two-way valve are more obvious than that of other kinds of actuators such as regulating valves, which are easy to install and maintain.
- Action express, small power, lightweight appearance.
- Response time of the electric two-way valve can be as short as a few milliseconds, and the coil power consumption of the properly designed electric two-way valve is very low, which is an energy-saving product.
- Can also be done only to trigger the action, automatically maintain the valve position, usually no power consumption.
- Electric two-way valve is small in size, saving space, lightweight and beautiful.
- Adjustment accuracy is limited, the applicable medium is limited.
- Electric two-way valve usually has only two states of switch, the spool can only be in two limit positions, and the adjustment accuracy can not be continuousl.
